Attention:
The operation of the radiance sensor has to be announced the people in charge prior to the cruise.
Summary

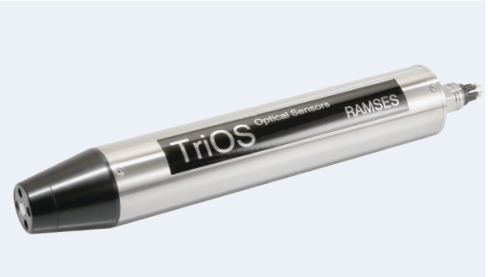

RAMSES radiometer are stand-alone and highly integrated hyperspectral radiometer for the UV, VIS and/or UV/VIS spectral range. On RV Heincke 1 Ramses-ACC-VIS irradiance sensor is installed on the foremast to measure downwelling solar irradiance. On the portside as well as on the starboard side of the foremast two Ramses-ARC Radiance sensors are installed, respectively. One of the Ramses-ARC sensors on each side is looking downwards the water surface while the other one looks upwards towards the sky.
| Manufacturer | TriOS |
|---|---|
| Model | RAMSES |
| Serial No. | n/a |
| Type | radiometers |
| REGISTRY-Link | ↪ REGISTRY (2368) |
Contacts
| Name | Institution | Role |
|---|---|---|
| Daniela Voss | Carl von Ossietzky University of Oldenburg | Engineer In Charge, Data Scientist, Owner, Device Contact |
| Jochen Wollschläger | Carl von Ossietzky University of Oldenburg | Data Scientist, Owner |
| Julia Oelker | Carl von Ossietzky University of Oldenburg | Data Scientist, Owner |
Components
| Name | Model | Serial Number | REGISTRY-Link |
|---|---|---|---|
| TriOS RAMSES-ACC hyperspectral cosine irradiance meter 847e | RAMSES-ACC | 847e | ↪ REGISTRY (8656) |
| TriOS RAMSES-ARC hyperspectral radiance meters 8474 | RAMSES-ARC | 8474 | ↪ REGISTRY (8658) |
| TriOS RAMSES-ARC hyperspectral radiance meters 8478 | RAMSES-ARC | 8478 | ↪ REGISTRY (8660) |
| TriOS RAMSES-ARC hyperspectral radiance meters_8475 | RAMSES-ARC | 8475 | ↪ REGISTRY (8659) |
| TriOS RAMSES-ARC hyperspectral radiance meters_847b | RAMSES-ARC | 847b | ↪ REGISTRY (8657) |
Position

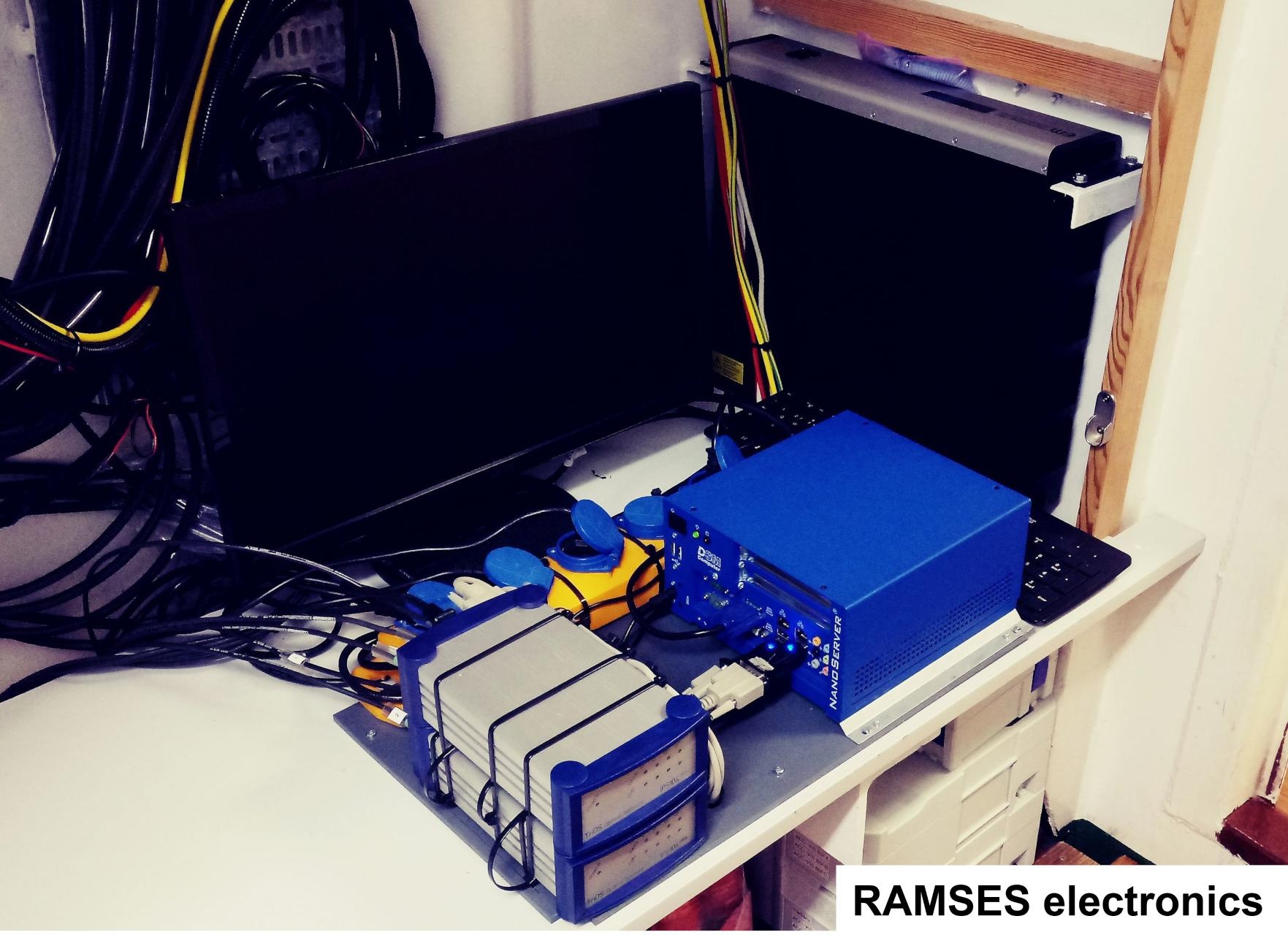

| Info | Electronics of the Ramses Sensor are located in the Lotgeraeteraum R202 on the tween deck. The sensors are installed on the foremast. |
| X | 0.0 none |
| Y | 0.0 none |
| Z | 0.0 none |
Data logging, storage and archiving
Logged Parameters
| Parameter | O2ARegistry Output Type | Unit |
|---|---|---|
| downwelling solar irradiance | diffuse radiation | W/m2 |
| upwelling radiance | direct radiation | W/m2 |
Central geographical ship's position and time standard
no information
Rawdata storage on board
Data are only stored on the PC in the Lotgeraeteraum R202 on the tween deck.
DShip
The data are not transferred to DShip.
Data archiving on land
After consultation with the data scientist and AWI Logistics the TriOS RAMSES data including meta data may be transferred to PANGAEA (https://www.pangaea.de/
)
)
