Attention:

The Valeport Mini SVP is permanently integrated and operates autonomously.

Summary

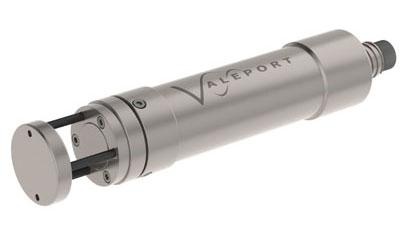

The Valeport miniSVS Sound Velocity Sensor provides high resolution, high accuracy sound velocity data. The basic principle is “time of flight”; that is to say, the sound velocity is calculated from the time taken for a single pulse of sound to travel a known distance.


Manufacturer Valeport
Model Valeport MiniSVS
Serial No. 30461
Type sound velocity sensors
REGISTRY-Link ↪ REGISTRY (8565)

Transducer Frequency

Contacts

Name Institution Role
FIELAX GmbH FIELAX Gesellschaft für Wissenschaftliche Datenverarbeitung mbH Engineer In Charge

Components

No subdevices available.

Position

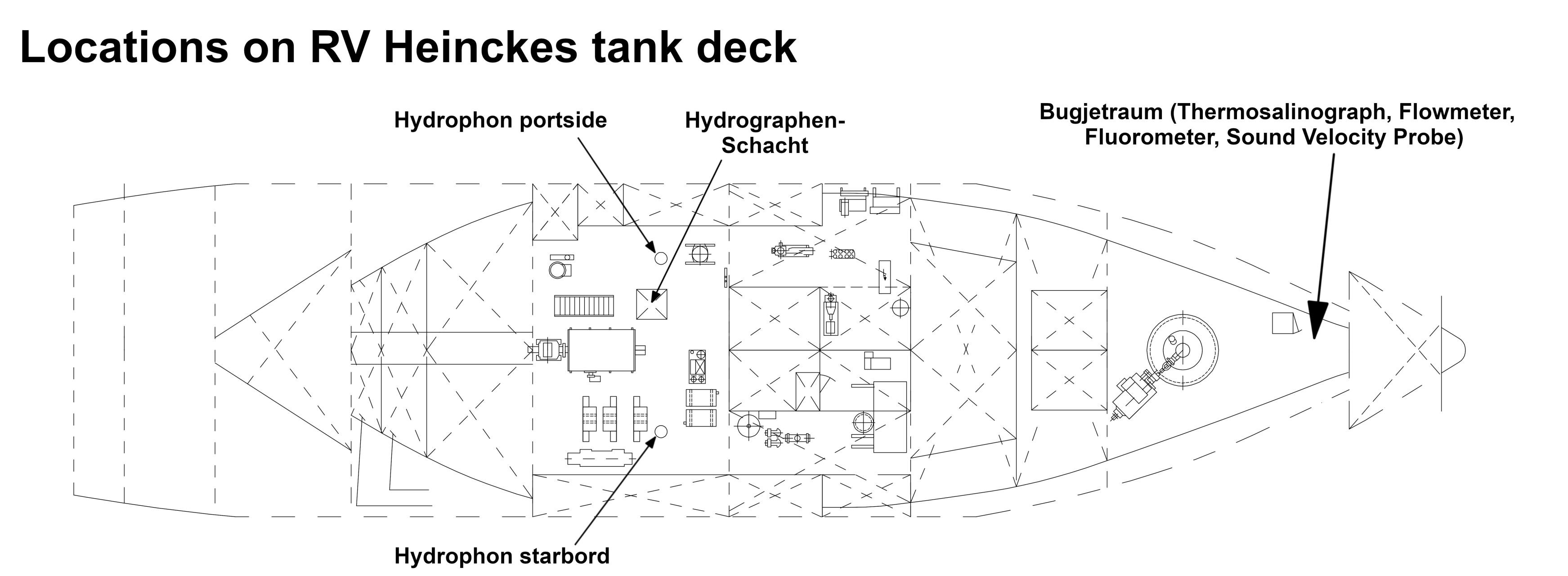

Infono xyz-position given. Valeport MiniSVS is installed in a flow through water tank in bow room of the tank deck.
X0.0 (no unit given)
Y0.0 (no unit given)
Z0.0 (no unit given)

Data logging, storage and archiving

Logged parameters

Parameter O2ARegistry Output Type Unit
sound velocity sound velocity m/s
water temperature water temperature °C

Central geographical ship's position and time standard

Time synchronization and geographical positioning is done by DShip receiving the data for logging.

Rawdata storage on board

Sound velocity raw data (uncorrected measurement data) are stored in data acquisition system DShip.

Multibeam

Valeport MiniSVS can be selected in Multibeam Echo Sounder control software SIS to be source of c-keel value. If so and raw data logging of multibeam echo sounder is switched on, c-keel value is stored in Simrad Processing File of type *.all

DShip

Uncorrected measurement data.

Device name

SVT Sonde

Parameters

Soundvelocity (m/s)
Temperature (°C)

Data archiving on land

After the cruise the DShip data set can be extracted from https://dship.awi.de/.
