Attention:
Please note that the system can only be operated upon request. Operations of the Salinometer requires experienced scientific staff on board. The system is not operated by the ship's crew. Announce operations with the Salinometer to AWI-Logistics prior to the cruise and clarify the data transfer after the cruise.
Summary

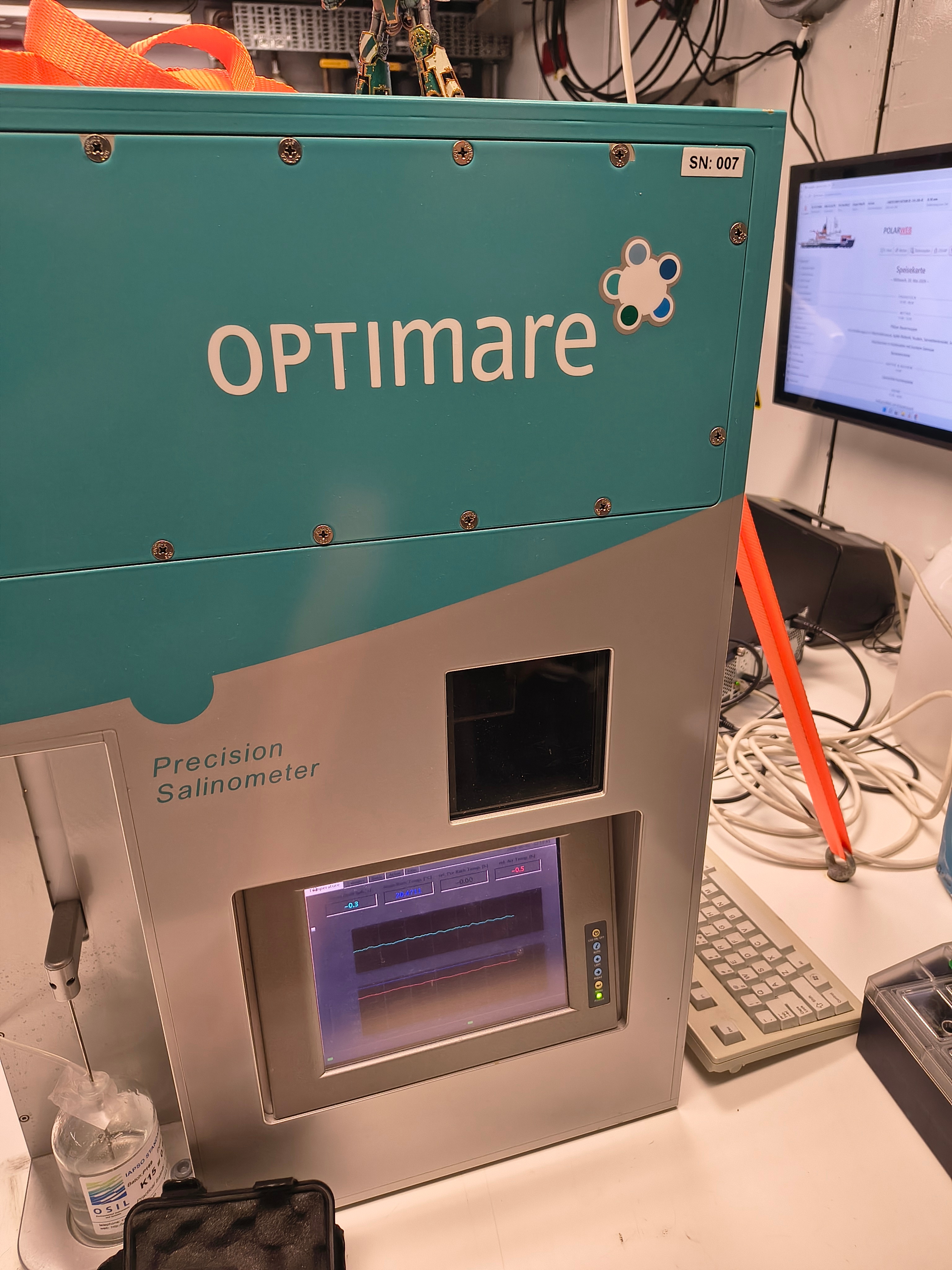

The Optimare Precision Salinometer (OPS) can be used to precisely measure the salinity of a water sample, e.g. for calibration purposes. The OPS measures the electrical conductivity of a given water sample and calculates the salinity based on the Practical Salinity Scale 1978 (PSS78) as published by UNESCO.
| Manufacturer | Optimare |
|---|---|
| Model | Precision Salinometer |
| Serial No. | 007 |
| Type | salinity sensors |
| REGISTRY-Link | ↪ REGISTRY (8445) |
Contacts
| Name | Institution | Role |
|---|---|---|
| Sandra Tippenhauer | Alfred Wegener Institute for Polar and Marine Research | Engineer In Charge, Data Provider |
Components
The Salinometer contains two controlled water baths (pre-bath 0.5l and main bath 13l) each equipped with Peltier module, stirrer, heat adapter and temperature sensor (SBE3 plus). Peltier element and stirrer are mechanically matched and located at one side of the bath. The conductivity is measured using a conductivity cell (modified SBE4). The system is connected via intake, tubing, filling pump and probe outlet.
The Salinometer is equipped with hard disk for data storage, all software included, USB and Ethernet Network connections and a touch screen as user interface, optional an USB keyboard or mouse can be connected. The conductivity cell can and should be calibrated ('standardized', i.e. performing a one point calibration) prior to a measurement using IAPSO Standard Seawater. The SBE3 plus can be returned to manufacturer Sea-Bird Electronics for recalibration.
The OPS is installed in room E-541.
The Salinometer is equipped with hard disk for data storage, all software included, USB and Ethernet Network connections and a touch screen as user interface, optional an USB keyboard or mouse can be connected. The conductivity cell can and should be calibrated ('standardized', i.e. performing a one point calibration) prior to a measurement using IAPSO Standard Seawater. The SBE3 plus can be returned to manufacturer Sea-Bird Electronics for recalibration.
The OPS is installed in room E-541.
Data logging, storage and archiving
Logged parameters
Conductivity, Salinity, Bath Temperature (incl. drift)
Central geographical ship's position and time standard
No time synchronising.
No online ship's position.
No online ship's position.
Rawdata storage on board
Local data storage. Operator is in charge of data backup. File format is ASCII
