Attention:
The system is operated by staff from the Atmospheric Physics section of the AWI. Scientific co-use is possible according to prior agreement with AWI Logistics, the Polarstern sounding coordinator (Katrin Müller) and Principal Investigator of the Polarstern Meteorological Observatory (Holger Schmithüsen). Helium is calculated to supply one 600 gramm balloon per day. If additional radio sonde ascents are planned, the user has to organize the additional sondes, balloons and helium.
Summary
The radiosonde sounding system gathers meteorological data (pressure, temperature, humidity, wind, position) from a mandatory radiosonde.
| Manufacturer | Vaisala |
|---|---|
| Model | |
| Serial No. | n/a |
| Type | radiosondes |
| REGISTRY-Link | ↪ REGISTRY (4200) |
Contacts
| Name | Institution | Role |
|---|---|---|
| Holger Schmithüsen | Alfred Wegener Institute for Polar and Marine Research | Principal Investigator, Data Provider |
| Alfred Wegener Institute for Polar and Marine Research | Alfred Wegener Institute for Polar and Marine Research | Owner |
| Loretta Preis | Alfred Wegener Institute for Polar and Marine Research | Device Contact |
| Sebastian Berger | Alfred Wegener Institute for Polar and Marine Research | Engineer In Charge |
| Katrin Müller | Alfred Wegener Institute for Polar and Marine Research | Principal Investigator, Editor |
Components

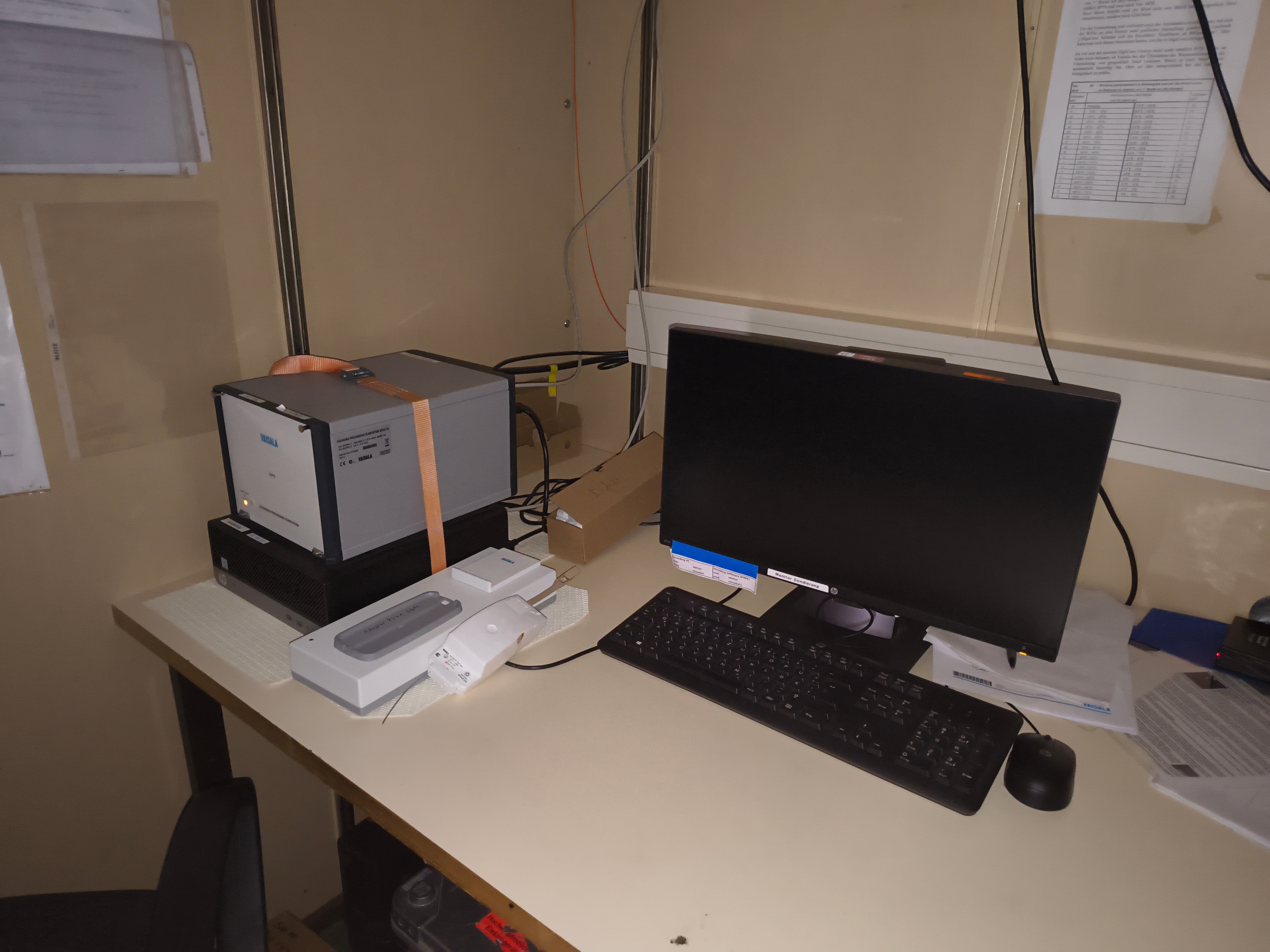

The system consists of a sounding PC, electronic unit "DigiCora", ground check set, GPS antenna, telemtry antenna, Helium filling unit.
| Name | Model | Serial Number | REGISTRY-Link |
|---|---|---|---|
| DigiCORA Sounding System MW41 | MW41 | n/a | ↪ REGISTRY (4145) |
| RS41-SGP Radiosonde | RS41-SGPE | n/a | ↪ REGISTRY (4146) |
| RS41-SGPE Radiosonde | RS41-SGP | n/a | ↪ REGISTRY (13904) |
Position
| Info | no xyz-position given, antenna located on upper observation deck, receiving station located in A112 |
| X | 0.0 |
| Y | 0.0 |
| Z | 0.0 |
Data logging, storage and archiving
Logged parameters
| Parameter | O2ARegistry Output Type | Unit |
|---|---|---|
| pressure | pressure | hPa |
| Relative Humidity | relative humidity | % |
| Atmospheric Temperature | temperature | K |
| wind direction | wind direction | deg |
| wind speed | wind_speed | m/s |
Central geographical ship's position and time standard
Time synchronising is regulated via onboard NTP server.
Geographical ship's position via unit's GPS receiver.
Geographical ship's position via unit's GPS receiver.
Data archiving on land
After the cruise, the operator transfers the measurement data along with required meta data to AWI. After consultation with the data scientist and AWI Logistics they are uploaded to the PANGAEA repository. Then, the data (including meta data) can be extracted from https://www.pangaea.de/
(for authorized users only).
(for authorized users only).File format(s) |
*.txt |
|---|---|
Calibration certificates |
NO |
